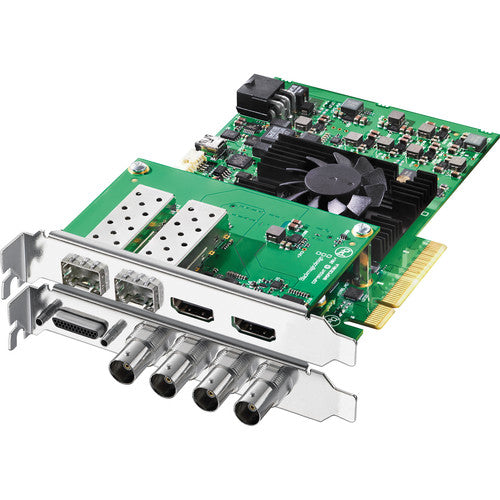

DeckLink 4K Extreme 12G

• 8-Lane PCIe Gen2 I/O Card
• Multi-Rate 12G-SDI and HDMI Connections
• Supports UHD 4K and DCI 4K Up to 60 fps
• Single & Dual Link 4:4:4:4/4:2:2 Signals
• 3D Stereoscopic SDI Output at 4:4:4:4
• Up/Down/Cross Conversion
• Optional Optical Fiber I/O Modules
• Breakout Cable for Analog / RS-422
• Genlock & Deck Control
• Compatible with Mac, Windows, and Linux

The Blackmagic Design DeckLink 4K Extreme 12G is an 8-lane PCIe Gen2 digital cinema capture and playback card with two multi-rate 12G-SDI inputs and outputs that accept resolutions from SD up to DCI 4K (4096x2160) at 60 fps. The card supports 10-bit YUV and 8-, 10-, and 12-bit RGB color, as well as up/down/cross conversions and 3D stereoscopic output at full bandwidth 4:4:4:4 RGB. The DeckLink 4K Extreme 12G features a mezzanine card design that has 4K HDMI input and output connectors on a second daughter card, along with connections for adding two optional optical fiber modules for Dual Link optical fiber SDI input and output. The card also supports AES/EBU balanced XLR and unbalanced RCA inputs/outputs, analog video I/O, reference input, and RS-422 control via an included breakout cable.
