Description
|
SKU: CONVMOF12G |
- Converts 12G/6G/3G-SDI to Optical Fiber
- Supports Signals up to DCI 4K25
- Multi-Rate, Bidirectional Capability
- Requires Separate SFP Optical Module
- Automatic Input Signal Detection
- 16-Channel Embedded Audio Support
- Diagrammed Function Switches
- Update via Converter Utility Software
- Locking, Universal Power Supply
- Compact Metal Housing

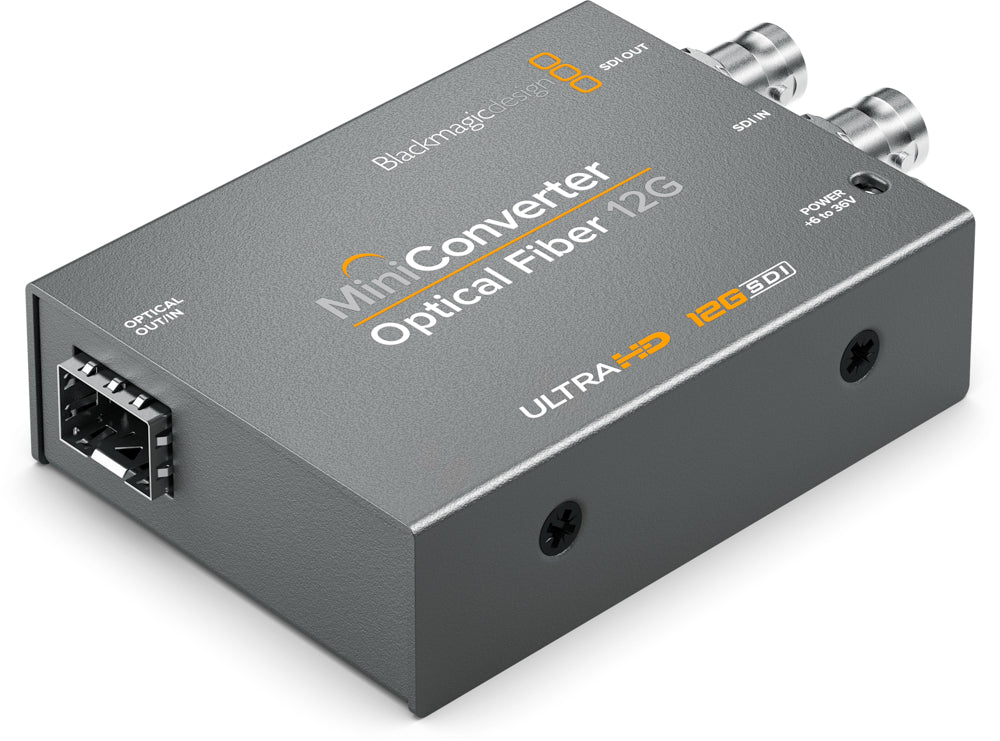

The Mini Converter Optical Fiber 12G-SDI from Blackmagic Design offers bidirectional, multi-rate SDI to optical fiber conversion capabilities with complete independence in each direction and support for up to DCI 4K25 and UHD 4K60 signals. This converter has one SFP optical fiber socket (requires a separate module), one 12G/HD/SD-SDI input, and one 12G/HD/SD-SDI output. With a 10-bit rate, you can take advantage of long fiber runs and compatibility with both studio and field HD-SDI and SD equipment.
Features include automatic signal detection and support for up to 16-channel embedded audio. Settings can be easily changed using the diagrammed function switches, or via the macOS/Windows-compatible converter software. This compact converter features a sturdy metal housing and includes a 12V universal power supply with a locking connection for added security.
